Dancer Duty Potentiometer Specifications
April 9, 2010DIGITAL PULSE TACHOMETER C-FACE RING KITS General Description
April 9, 2010
Dancer Duty Potentiometer (Precision Potentiometer) Connections
Models DDP01-K0XX and DDP02-K0XX
General Description • Standard Features • Specifications • Dimensions/Connections
Models
| Model Number | Description | Approx. Shipping Wt. |
|---|---|---|
| DDP01-K010 *Note 1 |
10,000 Ohm Dancer pot., NEMA 12 enclosure without limit switches |
4 (lbs.) |
| DDP02-K005 | 5,000 Ohm Dancer pot, NEMA 12 enclosure wlth two adjustable limit switches |
4 (lbs.) |
| DDP02-K010 *Note 1 |
10,000 Ohm Dancer pot., NEMA 12 enclosure with two adjustable limit switches |
4 (lbs.) |
| DDP01-K005 | 5,000 Ohm Dancer pot., NEMA 12 enclosure without limit switches |
4 (lbs.) |
Note 1: 10,000 ohm units typically stocked, others built to order.
Note 2: Stainless steel enclosure available on special order. Consult factory for dimension changes

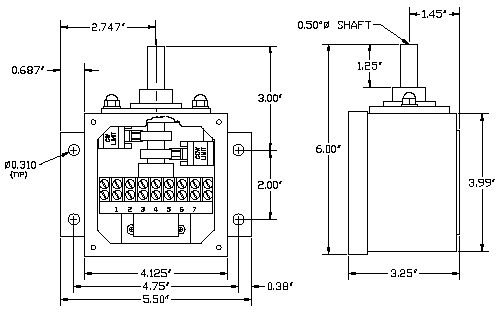

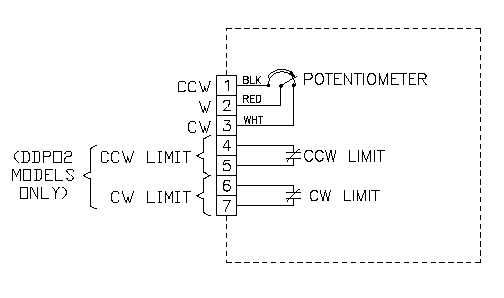

Dimensions and Connections
VIEW INSTRUCTION MANUAL
View Brochure
General Description • Standard Features • Specifications • Dimensions/Connections
Back to System Interface Components • Back to Product Line
Dancer Duty Potentiometer
Models DDP01-K0XX and DDP02-K0XX
Dimensions/Connections
