Load Cell Amplifier Module
LCA210-000

General Description• Standard Features • Specifications • Model Ratings/Dimensions • Connections

General Description

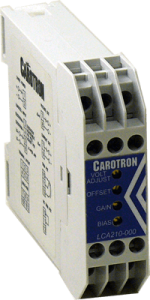

Model LCA210-000 Load Cell Amplifier is a Din-Rail Module designed for applications where signal conditioning of a single channel is required, while maintaining electrical isolation between the input and output signals. Designed for a wide variety of input signals, the LCA210-000 can accept the following types of inputs:

• Potentiometer
• D.C. Voltage
• Load Cell (Strain Gauge & LVDT type)

The LCA210-000 also provides an adjustable excitation voltage source when using load cells. The input signal is conditioned by scaling circuits which can be modified via multi-turn OFFSET, BIAS, and GAIN potentiometer adjustments. Terminal strip connections are provided for an optional external TRIM pot. The output circuit can be configured to source either a voltage or current. Typical output ranges are 0 to ±10 VDC, 0 to 20 mADC, or 4 to 20 mADC.

Literature

• Instruction Manual
• Brochure

Drawings

• Connection/2D/3D
