Carotron Press Drive Model P22194-1

General Description Standard FeaturesSpecifications


Specifications

Electrical Specifications

A.C. Line Input

  • 195 to 260 VAC, 3 phase, 50/60 Hz + 2 Hz, 65 Amp Full Load Max

Armature Output

  • 0 to 240 VDC, 72 Amp Full Load Max / 90 Amp Overload Max

Field Output

  • 150/240/300 VDC, 10 Amp max

Accessory Outputs

  • Power Supplies

             + 10 VDC @ 5 mA Run Speed pot reference supply

             + 10 VDC @ 5 mA Jog Speed pot reference supply

             6.4 VDC @ 5 mA Torque Limit pot reference supply

  • Fault relay output : SPDT, 3 Amp @ 30 VDC /120 VAC
  • Current Mode relay output : SPDT, 3 Amp @ 30 VDC /120 VAC
  • Motor relay output : SPDT, 3 Amp @ 30 VDC /120 VAC

Horsepower Range

  • 5 to 20 HP @ 240 VDC

Speed Regulation

  • Armature Feedback : + 1% of base speed
  • Tachometer Feedback : +5% of base speed

Torque Regulation

  • + 2% of range selected
Speed Range

  • 20:1 motor dependent

Temperature Range

  • Chassis : 0 to 50 degrees C

 Control Board Adjustments

  • P1   Integral Null
  • P2   Slope
  • P3   IR Comp
  • P4   I (Current) Integral
  • P5   I (Current) Proportional
  • P6   Max Jog Speed
  • P7   Jog Accel/Decel
  • P8   Max Run Speed
  • P9   Over Current
  • P10 Min Run Speed
  • P11 Velocity Proportional
  • P12 Start Accel
  • P13 Stop Decel
  • P14 Max Torque
  • P15 Velocity Integral

 Physical Specifications

  • Dim’s:   17.00”H x 13.750W x 6.125”D
  • Shipping Weight: 35 lbs.

View Brochure

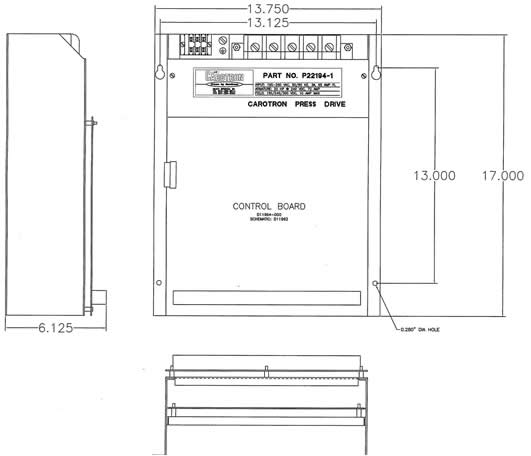

Carotron Press Drive P22194-1 Drawing



For more information about this product,
call 1-888-286-8614 or e-mail us today!
