Carotron Brand Products are Made in USAPrecision Bipolar Isolation Card
Model D10562-000

General DescriptionStandard FeaturesSpecificationsApplication ExampleDimensions/Connections


General Description

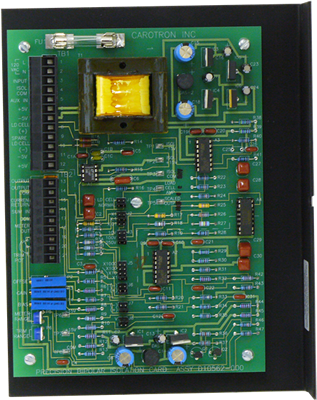

Precision Bipolar Isolation Card D10562-000Model D10562-000 Precision Bipolar Isolation Card is designed for applications where signal conditioning is required in a single channel, while maintaining electrical isolation between input and output signals. Designed for a wide variety of input signals, model D10562-000 can accept the following types of inputs:


•Potentiometer
•D.C. voltage
•Load cell


Each input signal is conditioned by scaling circuits which can be modified via on board multi-turn OFFSET, GAIN and BIAS potentiometers. A multi-turn TARE potentiometer is also provided to zero out initial inputs when the card used as a load cell amplifier. Terminal strip connections are provided for a trim potentiometer. Also a METER RANGE adjustment is provided to limit the range of the meter output. The output circuit can be configured to source either a voltage or a current. Typical output ranges for the Bipolar Isolation Card are -10 to +10VDC, 0 to 20mADC.

VIEW INSTRUCTION MANUAL
View Brochure

For more information about this product,
call 1-888-286-8614 or e-mail us today!
