ELITE® PRO
Series 5 – 600 HP Digital DC Motor Control, Regenerative and Non-Regenerative
General Description • Standard Features • Specifications • Model Ratings/Dimensions • Connections

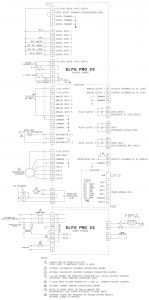

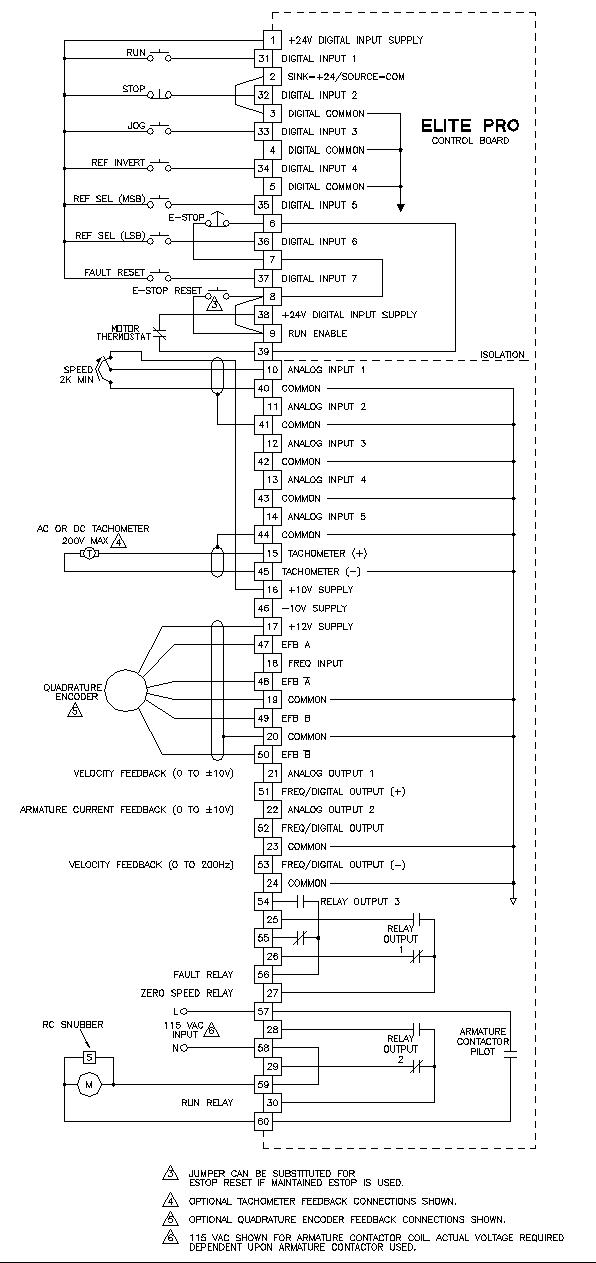

Connections
DOWNLOAD PROLINK SOFTWARE V2 — is Carotron’s software package that is designed to be used with the Elite®Pro series of digital DC drives that support the Modbus serial communications protocol. The software will allow users to monitor, update, and document the settings in an Elite®Pro drive. Early models of the Elite®Pro did not use the Modbus protocol and ProLink version l.x.x is still required to communicate with these drives. The communication protocol of and Elite®Pro can easily be determined by observing the LCD on the drive when power is applied to the unit. The Modbus protocol is implemented in versions 16.x.x.x or later.
DOWNLOAD PROLINK SOFTWARE V1 – is Carotron’s software package that is designed to be used with the Elite®Pro series of digital DC drives that DO NOT support the Modbus serial communications protocol. The software will allow users to monitor, update and document the settings in an Elite®Pro drive.
